Dynasty Hardware Emergency Exit Device
$169.95
- Quality Build: Passed half a million cycles test, Grade 1 certified.
- ADA Approved: Ideal for medium to high traffic doors.
- Reversible Design: Assures installation on both door sides.
- Keyed Lever Access: Provided keys for lock/unlock feature.
- Durable Dogging: Easy open on dogged position, no lever turning.

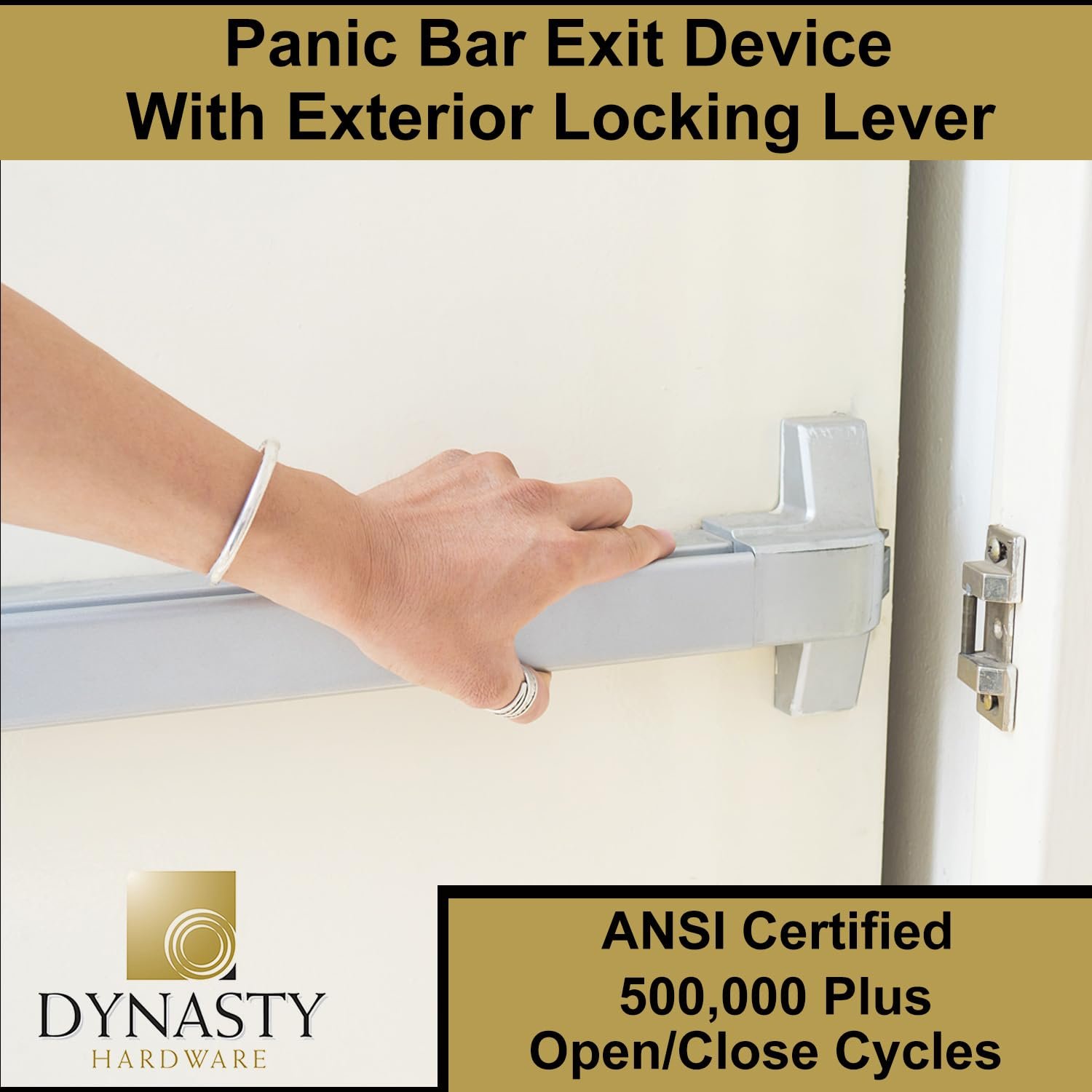

Dynasty Hardware Exit Panic Device With Exterior Lever
Each set includes the following Interior push pad for wood or metal doors. Fits doors between 30 and 36 inches in width. Overall length of device is 31 inches Dogging Key – Keeps latch retracted. Converts door to a push pull function Exterior Locking Lever Trim. Key retracts latch bolt, unlocks lever. ANSI function 08 Adjustable roller latch – Mounts on door frame stop. Certifications ANSI Grade 1 approved, exceeds 500,000 cycles Complies with ANSI 117.1 for accessible and usable Buildings and Facilities Standards ADA Compliant

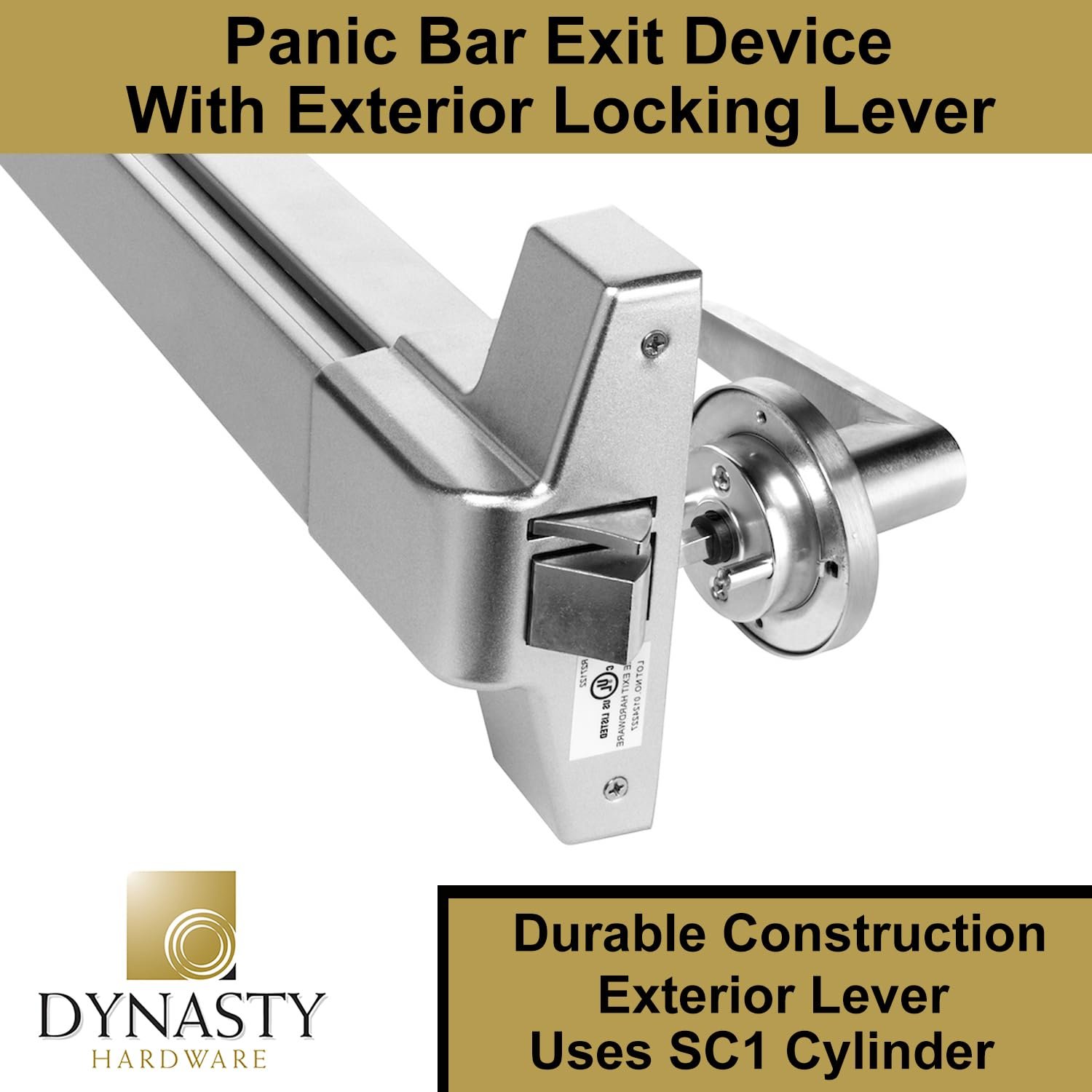

Keyed Exterior Lever
The Dynasty Hardware Exit Panic Device comes with an exterior lever that can be either locked or unlocked using the set of keys which are included ANSI Function 08 Uses “C” Keyway

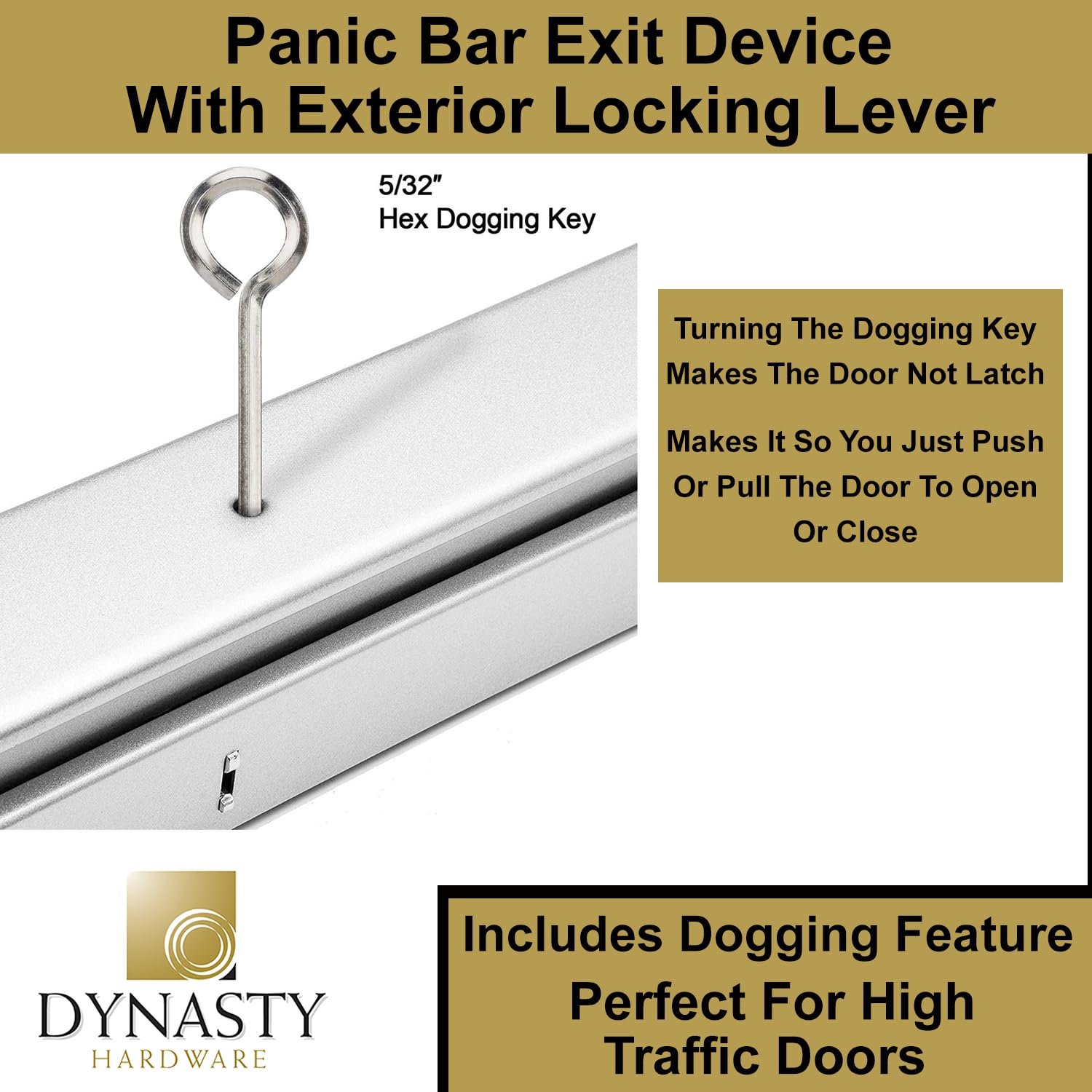

Dogging Key
Each Dynasty Hardware Exit Devices comes with a dogging key. Dogging is a function of the exit device on the inside of the door. Dogging is when the latch of the device is mechanically held retracted by locking the panic device in the depressed position. When the device is in the dogged position the door can be opened by simply pushing on the inside or pulling on the exterior handle. This is a great feature for doors that receive heavy traffic. The device can be dogged using the hex key that comes with the device. Simply insert the key into the hole on the push pad and turn.

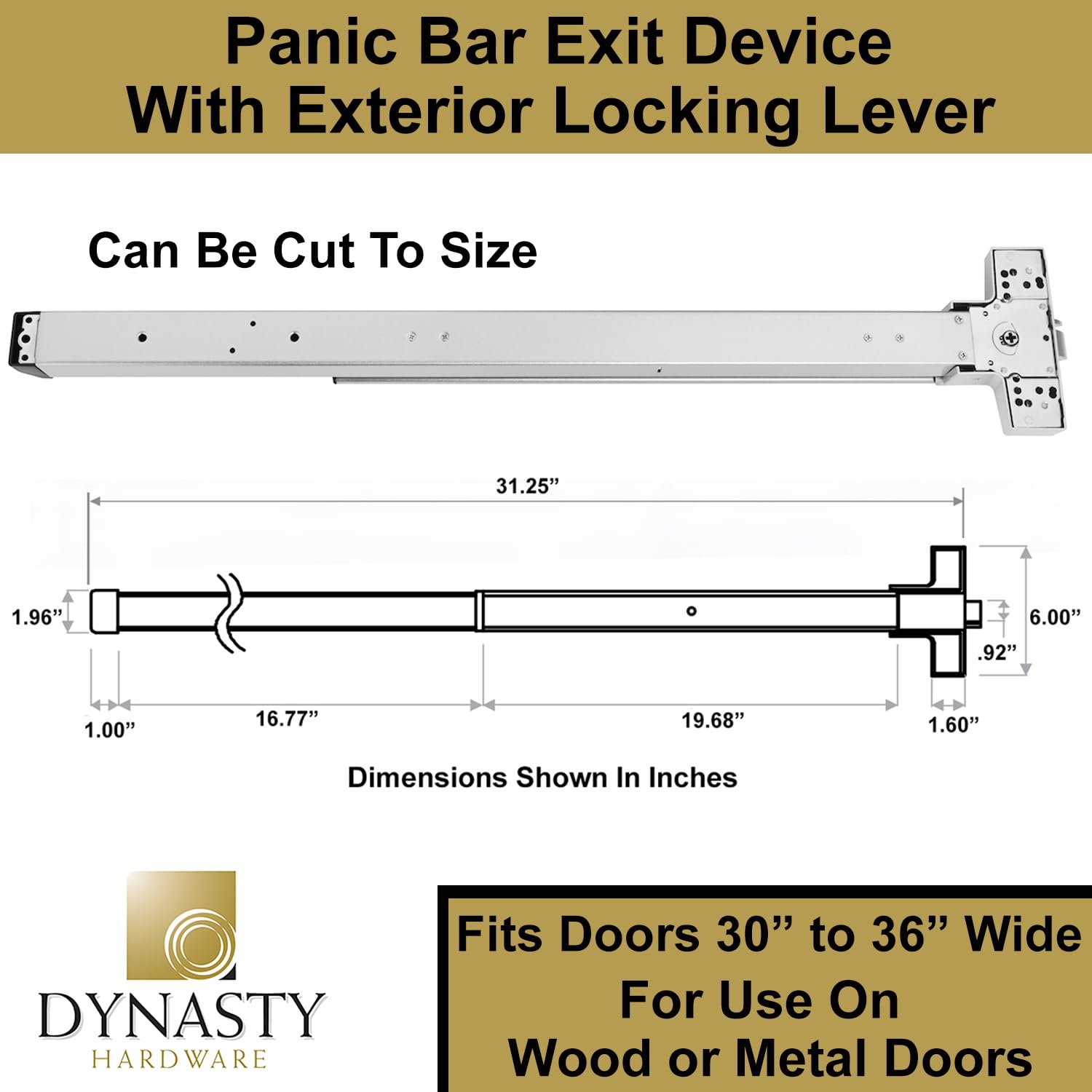

Exit Device Can Be Cut To Fit Your Door
The Dynasty Hardware Exit Device can be cut to fit your door. Fits doors that are between 30 and 36 inches in width For use on either wood or metal doors Overall exit device length is 31 inches Includes all mounting hardware
